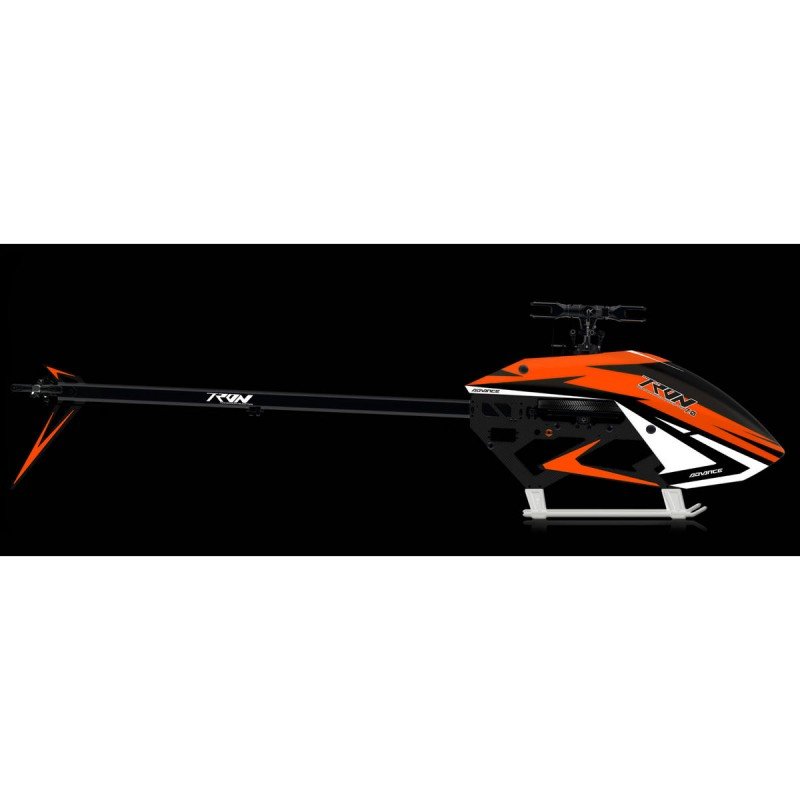

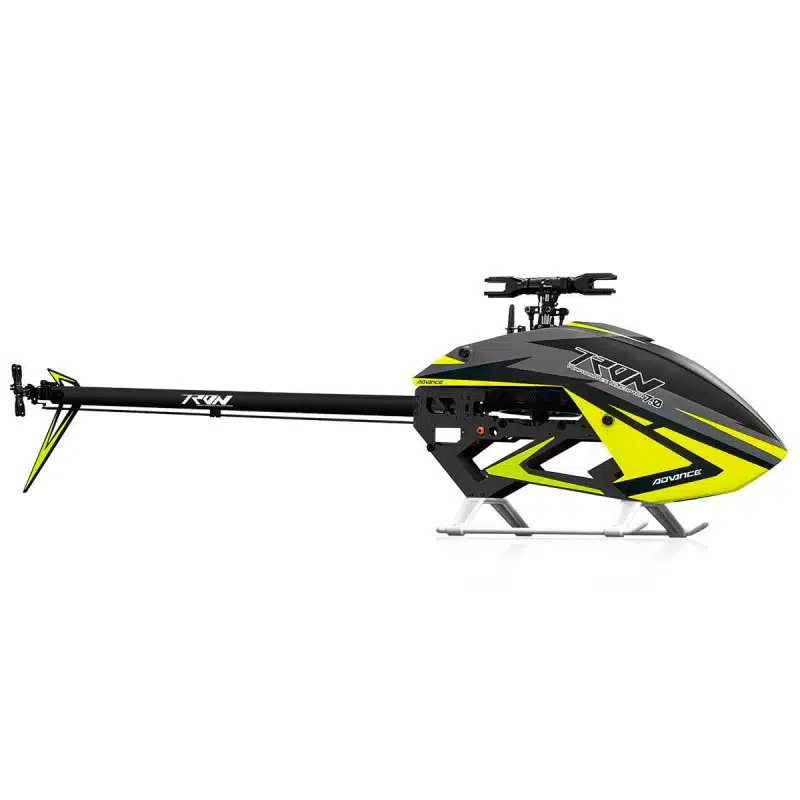

Tron Helicopters Tron 7.0 Advance Electric Helicopter Kit

The Tron 7.0 Advance presents pilots with a comprehensive set of features in high demand, coupled with ease of assembly, meticulously optimized flight performance, and a user-friendly design. These elements seamlessly converge in this 700 helicopter package. Key mechanical components, such as the octo boom, require no additional boom supports. Additionally, robust 2mm carbon fiber frames, a 12mm main shaft, a 10mm spindle shaft, and thoughtfully designed wiring contribute to a helicopter with a low parts count. The in-flight performance is truly exceptional, achieved through a relentless focus on weight reduction, precision CNC rotor head and tail components ensuring virtually zero play during assembly, and a servo layout and rotor head design that caters to a wide array of flybarless gyro systems available in the market.

Features:
Updated State of the art unique and compact belt tensioner
High visibility canopy for perfect orientation in flight
Updated Herringbone split CNC main gear and motor pinion for super quiet and efficient performance
Bearing block supported pinion, reducing overall wear on the power system and drive train
Compatible with a wide range of motor sizes, 4035-4535, 520-560kV (6mm shaft required min. length = 20mm)
Semi fusion lower frame and tail fin for awesome look and visibility
12mm hollow main shaft
10mm feathering shaft
Real full carbon mainframe
Full CNC precision rotor head
Full CNC precision tail rotor system
Perfectly thought-out servo layout in conjunction with the FBL system and ESC
Wide battery compartment with quick lock and release system
16 tooth motor pinion included in the kit
Octa boom design with oval side shapes
Wide battery compartment with quick lock and release system.
Supersonic canopy mounts are included in kit
Available in multiple color options
Specifications:
Completion level: Unassembled
Power Plant Type: Electric
Main blade length: 685-720mm
Tail Blade Length: 95-116mm
Motor Drive Gear: 16T
Main Drive Gear: 151T
Autorotation Drive Pulley: 125T
Tail Drive Gear: 25T
Drive Gear Ratio: 9:43:1:5.08
Weight (airframe only): 2190g
Main blade length: 685-720mm
Includes:
(1) Tron 7.0 Advance Electric Helicopter Kit
Needed to Complete:
(1) 2.4GHz 6+ Channel Helicopter Radio Transmitter
(1) 2.4Ghz 6+ Channel Receiver
(1) 685-720mm Main Blades
(1) 95-116mm Tail Blades
(1) ESC (+130A)
(1) 4035-4535 520-560kV series Brushless Motor
(3) Full size cyclic servos
(1) full size tail Servo
(1+) LiPo Battery (12S-5000mAh recommended)
(1) Compatible charger
(1) Pitch gauge
(1) 3-Axis Flybarless System
Various tools, lubes & greases for setup and assembly
